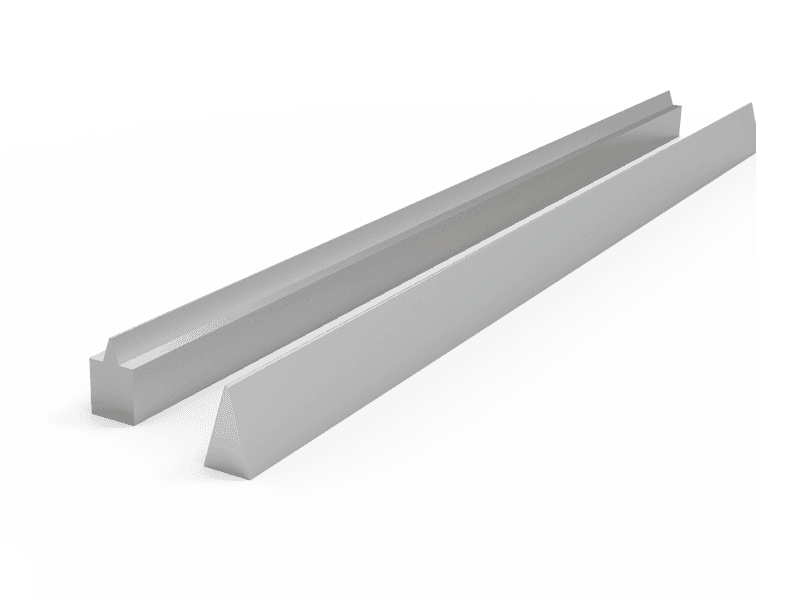

Triangle wire also called V-shaped wire, is popular in the filtration applications like wedge wire screen and floor drain grate.
The wedge wire commonly acts as the support rod in the wedge wire screen system.
They are all available in stainless steel, carbon steel and other required alloy materials.
* Special sizes and materials are also available.
Wedge Wire Screens
The wedge wire screen commonly adopts triangle wire as the profile wire for accurate filtration and wedge wire as the support rod.
Due to the flexible and adjustable open area and slot opening, the triangle wire and wedge wire decides the filtration accuracy and working efficiency in the wedge wire screen system.
Wedge wire screens
Triangle wire as profile wire

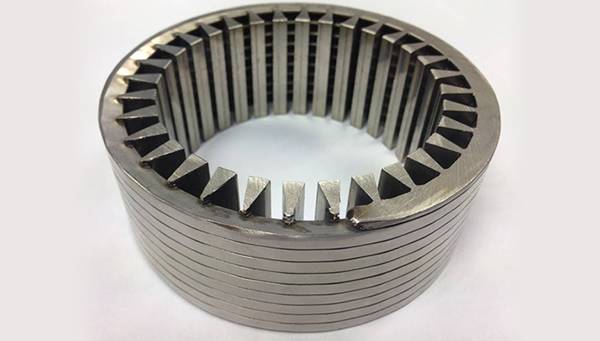

Triangle wire as support rod

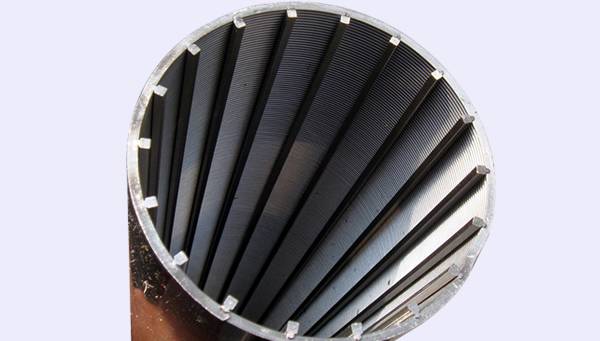

Wedge wire as support rod

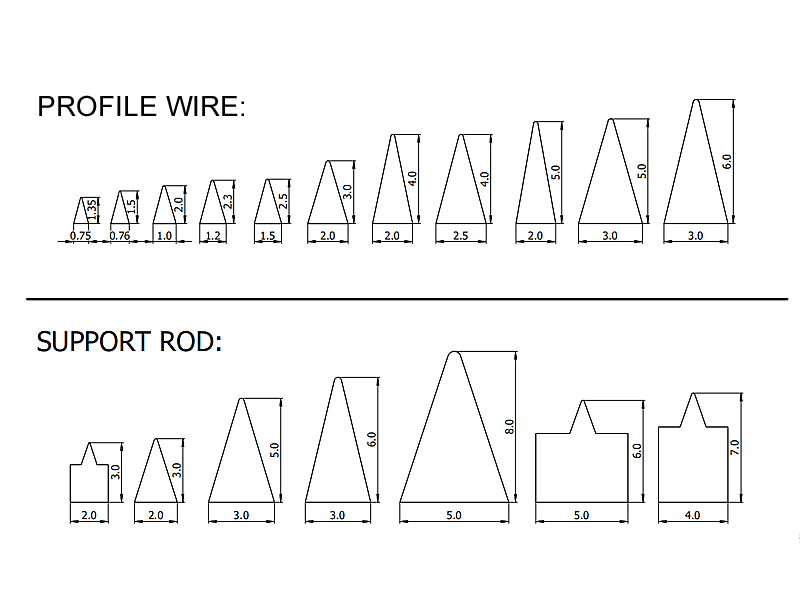

Available Sizes (unit mm)
Floor Drain Grates
Another important application of triangle wire is floor drain grates.
Floor drain grating adopts triangle wires as the surface wire due to its smooth surface, excellent filtration, high open surface ratio and low possibility of blanking.
It adopts stainless steel triangle wires due to its excellent corrosion and rust resistance performance.
FTriangle wire floor drain grate

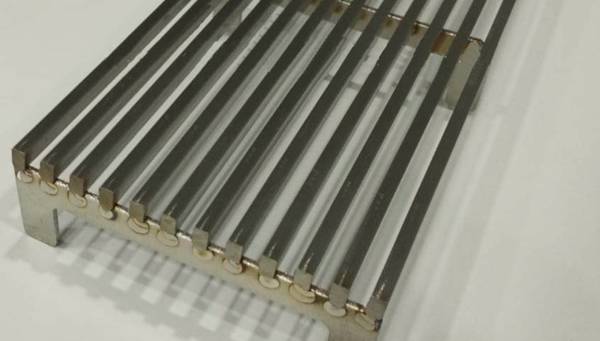

Wedge wire floor drain grate

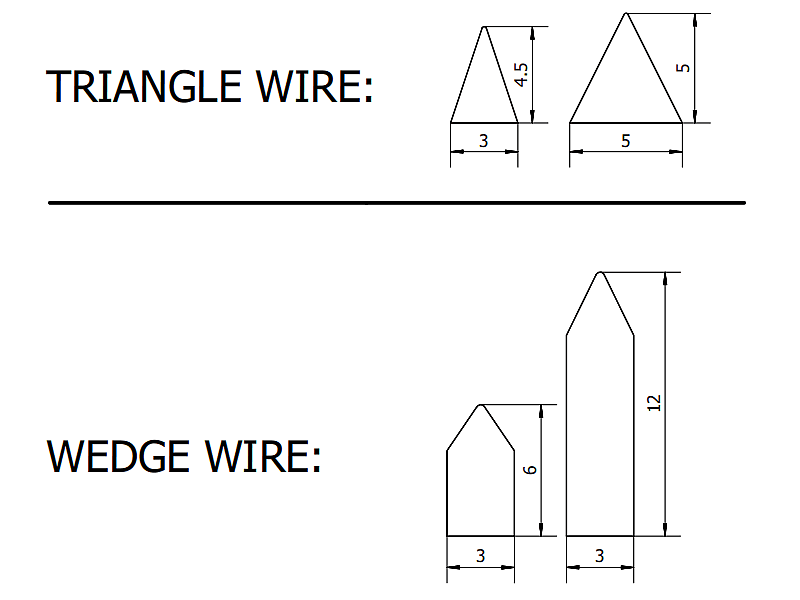

Available Sizes (unit mm)
