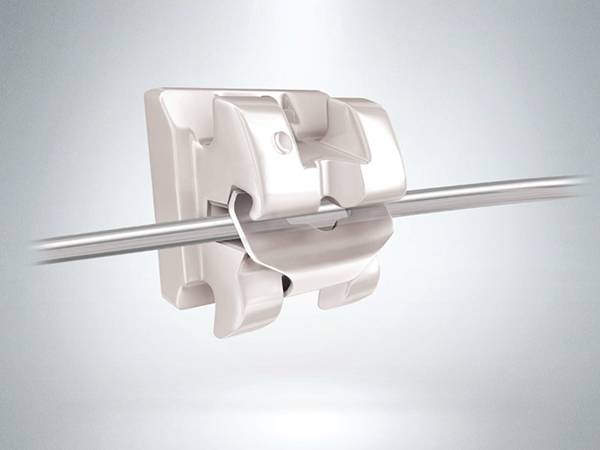

Nowadays, the rectangular and square shaped wire has replaced the round wires and more and more popular as orthodontic archwire. They provide minimal friction, better tooth control and small width control.
Stainless steel material is the most widely used materials due to its lower costs, better elasticity and yield strength than other materials.

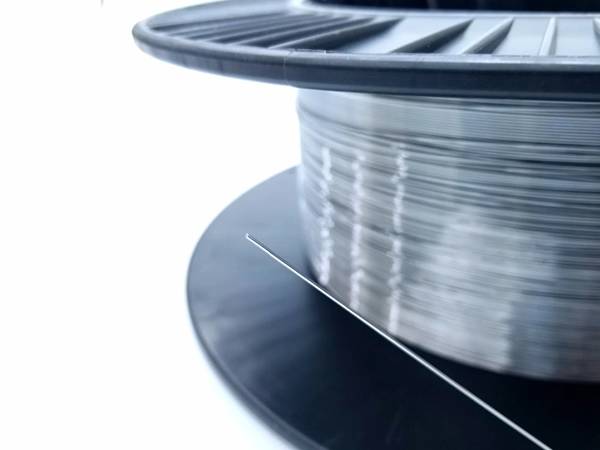

All our square and rectangular wires are exactly manufactured to the exact size, in all dimensions and flexibility (or stiffness).
Available shaped wire types

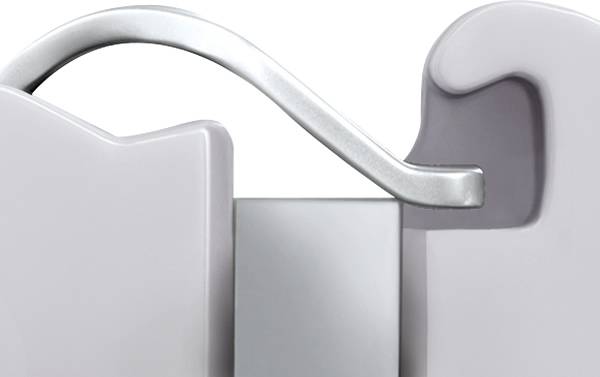

Rectangular wire

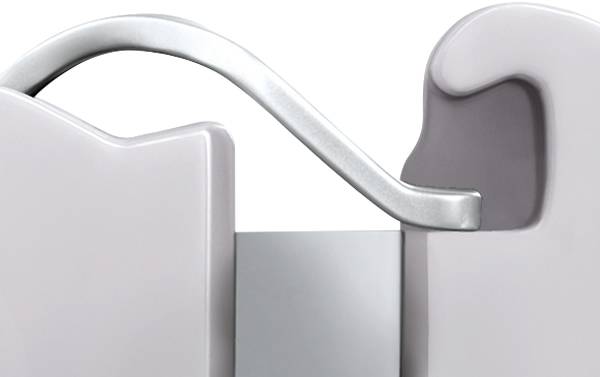

Square wire
Benefit of Archwire
Application of Archwire

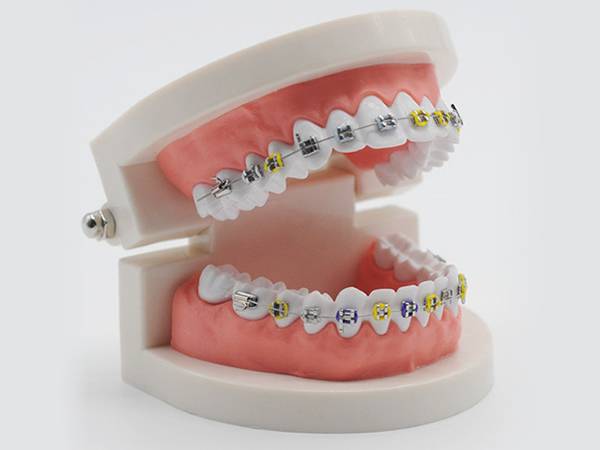

Rectangular and square shaped wire is widely used for the Orthodontic Archwire production in medical fields.
| Optional Archwire Sizes | ||
|---|---|---|
| Item | Sizes (inch) | Sizes (mm) |
| AW-01 | 0.014" × 0.025" | 0.014 × 0.635 |
| AW-02 | 0.016" × 0.016" | 0.406 × 0.406 |
| AW-03 | 0.016" × 0.022" | 0.406 × 0.559 |
| AW-04 | 0.017" × 0.022" | 0.432 × 0.559 |
| AW-05 | 0.018" × 0.018" | 0.457 × 0.457 |
| AW-06 | 0.018" × 0.022" | 0.457 × 0.559 |
| AW-07 | 0.017" × 0.025" | 0.432 × 0.635 |
| AW-08 | 0.018" × 0.025" | 0.457 × 0.635 |
| AW-09 | 0.019" × 0.025" | 0.483 × 0.635 |
| AW-10 | 0.020" × 0.020" | 0.508 × 0.508 |
| AW-11 | 0.021" × 0.025" | 0.533 × 0.635 |
